Migrating from Debian 10 → 13 broke GPIO switch on P9_19

RobertCNelson · October 6, 2025, 5:50pm

testing… WIP: BONE-LED-P9-19 · beagleboard/BeagleBoard-DeviceTrees@0f19266 · GitHub

and..

and then.. BONE-LED-P9-19: disable i2c2 node to get P9-19 · beagleboard/BeagleBoard-DeviceTrees@18326d1 · GitHub

voodoo@23-am335x-bbb:~$ sudo beagle-version
eeprom:[A335BNLT0A5C3313BBBK2518]
model:[TI_AM335x_BeagleBone_Black]
dogtag:[BeagleBoard.org Debian Trixie Base Image 2025-08-08]
bootloader:[microSD-(push-button)]:[/dev/mmcblk0]:[U-Boot SPL 2022.04-ge543709d (Jun 27 2025 - 18:09:26 +0000)]:[location: dd MBR]
UBOOT: Booted Device-Tree:[am335x-boneblack-uboot.dts]
UBOOT: Loaded Overlay:[BB-ADC-00A0.kernel]
UBOOT: Loaded Overlay:[BB-BONE-eMMC1-01-00A0.kernel]
UBOOT: Loaded Overlay:[BONE-LED-P9-19.kernel]
kernel:[6.15.11-bone27]
/boot/uEnv.txt Settings:
uboot_overlay_options:[enable_uboot_overlays=1]
uboot_overlay_options:[uboot_overlay_addr1=BONE-LED-P9-19.dtbo]
uboot_overlay_options:[disable_uboot_overlay_video=1]
uboot_overlay_options:[uboot_overlay_pru=AM335X-PRU-UIO-00A0.dtbo]
pkg check: to individually upgrade run: [sudo apt install --only-upgrade <pkg>]
WARNING:pkg:[bb-cape-overlays]:[NOT_INSTALLED]
pkg:[bb-customizations]:[1.20250808.0-0~trixie+20250808]
pkg:[bb-usb-gadgets]:[1.20250523.1-0~trixie+20250527]
pkg:[bb-wl18xx-firmware]:[1.20230703.0-0~trixie+20240703]
pkg:[kmod]:[34.2-2bbbio1~trixie+20250522]
WARNING:pkg:[librobotcontrol]:[NOT_INSTALLED]
cmdline:[console=ttyS0,115200n8 root=/dev/mmcblk0p3 ro rootfstype=ext4 rootwait fsck.repair=yes earlycon coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100]
dmesg | grep remote
[   16.339486] systemd[1]: Reached target remote-fs.target - Remote File Systems.
[   36.863271] remoteproc remoteproc0: wkup_m3 is available
[   36.983169] remoteproc remoteproc0: powering up wkup_m3
[   37.010356] remoteproc remoteproc0: Booting fw image am335x-pm-firmware.elf, size 217148
[   37.063320] remoteproc remoteproc0: remote processor wkup_m3 is now up
[   52.123191] remoteproc remoteproc1: 4a334000.pru is available
[   52.253347] remoteproc remoteproc2: 4a338000.pru is available
dmesg | grep pru
[   52.123191] remoteproc remoteproc1: 4a334000.pru is available
[   52.253347] remoteproc remoteproc2: 4a338000.pru is available
dmesg | grep pinctrl-single
[    3.510441] pinctrl-single 44e10800.pinmux: 142 pins, size 568
dmesg | grep gpio-of-helper
dmesg | grep wlcore
lsusb
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
lspci
pcilib: Cannot open /proc/bus/pci
lspci: Cannot find any working access method.
END
voodoo@23-am335x-bbb:~$ gpioinfo  | grep P9_19
        line  13:       "P9_19 [i2c2_scl]"      output consumer="P9_19"

oivato · October 6, 2025, 6:24pm

Thanks.
So next steps:

Compile with dtc
Copy BONE-LED-P9-19.dtbo to /lib/firmware/
add in /boot/uEnv.txt: uboot_overlay_addr4=BONE-LED-P9-19.dtbo
Reboot

Points I’m not sure:

What’s the line to compile it with dtc?
What’s the bash command to turn it on and off

Can I keep my API the way it is now (chip number 3 and line 13)? code is bellow:

Userspace API I’m using (libgpiod v2)

// exactly what my app does today
chip_RS485_RTS = gpiod_chip_open_by_number(3);
line_RS485_x_RTS = gpiod_chip_get_line(chip_RS485_RTS, 13);
ret = gpiod_line_request_output(line_RS485_x_RTS, "RS485_1_RTS", 0);

/* later */
int rc = gpiod_line_set_value(line_RS485_x_RTS, 1);
rc = gpiod_line_set_value(line_RS485_x_RTS, 0);

RobertCNelson · October 6, 2025, 6:38pm

git clone -b v6.16.x https://github.com/beagleboard/BeagleBoard-DeviceTrees
cd ./BeagleBoard-DeviceTrees/
make

Updated to v6.16.x to match your kernel

RobertCNelson · October 6, 2025, 6:39pm

This should work..

voodoo@23-am335x-bbb:~$ echo 0 > /sys/class/leds/P9_19/brightness
voodoo@23-am335x-bbb:~$ echo 1 > /sys/class/leds/P9_19/brightness

RobertCNelson · October 6, 2025, 6:51pm

now i see your on this kernel.. let me sync..

oivato · October 6, 2025, 6:53pm

I did:

cpp -I /opt/source/dtb-6.16.x/include -P BONE-LED-P9-19.dtso | dtc -@ -I dts -O dtb -b 0 -o BONE-LED-P9-19.dtbo -
cp BONE-LED-P9-19.dtbo /lib/firmware/
Added in /boot/uEnv.txt: uboot_overlay_addr4=BONE-LED-P9-19.dtb

After the reboot the line was down for the first time - which was a great indicator

oivato · October 6, 2025, 7:00pm

Even though P9_19 was off for the first time, my program couldn’t get it up.
ChatGPT comeup with those lines (sorry, I’m new to the linux world ):

LED=P9_19
drv=$(readlink -f /sys/class/leds/$LED/device/driver) || true
dev=$(basename $(dirname $(readlink -f /sys/class/leds/$LED))) || true
echo “$dev” > “$drv/unbind”

Which unbided the P9_19 from the LED driver.

Then I could switch it on and off with gpioset -z -c /dev/gpiochip3 13=(1 or 0)

Final teste: I restarted my program and

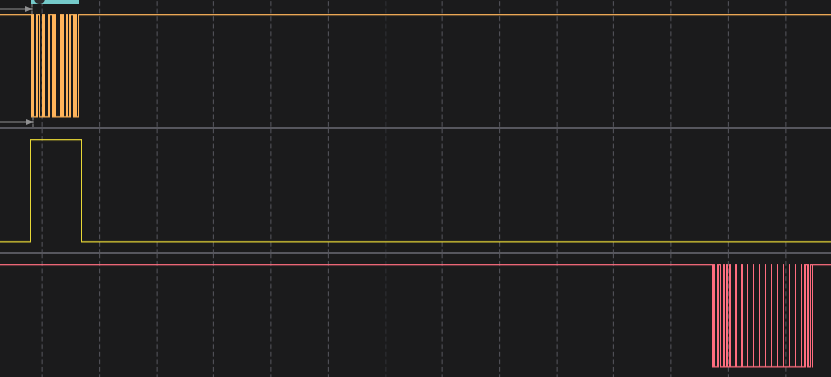

P9_19 (in yellow) worked

@RobertCNelson Is there a way to disasociate the P9_19 from the LEDs driver?
And again: thank you VERY much!

RobertCNelson · October 6, 2025, 7:14pm

So, what your really missing from your current overlay: BeagleBoard-DeviceTrees/src/arm/overlays/BONE-LED-P9-19.dtso at v6.16.x · beagleboard/BeagleBoard-DeviceTrees · GitHub

P9.19/P9.1x: remove pinmux from i2c2: (overlays can’t delete, so we cheat by “appending” empty…)

&i2c2 {
	pinctrl-0 = <>;
	status = "disabled";
};

This free’s up P9.19 for normal use.

In the BONE-LED-P9-19.dtso i tied P9.19 to thru:

	leds {
		pinctrl-names = "default";
		pinctrl-0 = <&bb_gpio_p9_19_pins>;

		compatible = "gpio-leds";

		pin@919 {
			label = "P9_19";
			gpios = <&gpio0 13 GPIO_ACTIVE_HIGH>;
			default-state = "keep";
		};
	};

But really, you could add it to your BB-UART1-00A0 overlay.. It just has to be called from somewhere in am33xx_pinmux…

&am33xx_pinmux {
	pinctrl-names = "default";
	pinctrl-0 = <&rts_p9_19_pins>;

	rts_p9_19_pins: pinmux_rts_p9_19_pins {
		pinctrl-single,pins = <0x17C 0x07>; /* P9_19 as GPIO */
	};
};

silver2row · October 6, 2025, 10:47pm

@oivato ,

So, every GPIO pin was already claimed somehow and it is hard to believe. Maybe I am taking this initiative wrongly here.

Why could you not already use a GPIO that was available? I am not upset or being ugly to you, I hope.

I just thought, “If she is using a GPIO that is available, then using the P9.19 header pin is not needed.”

In any light, I am glad you guys/gals got it situated and things are working. But like I say, @RobertCNelson is a master of the art/science/whatever of beaglebone in general. This also includes Linux and shell scripting for his achieving ways.

Seth

P.S. @oivato , it is too bad I could not figure it out in time. Good luck!

oivato · October 7, 2025, 11:45am

Robert, you binded P9_19 to the LED’s driver, right?

My program isn’t able to togle the pin, unless I unbind it manually through the command line.

Is it possible to bind it to something else?

I want my libgpiod functions to request the output and set it’s value, but right now they see the output as busy when they try to select it.

If it’s possible, how to do it?

oivato · October 7, 2025, 12:09pm

Don’t worry, my friend! I apreciate the attention and time you spent trying to help me!

What I understant form this process:

During early boot, each pin comes up with a default mux function; on BeagleBone Black, P9_19 defaults to I²C (I2C2_SCL). Later, device-tree overlays are applied to change pinmux as needed. If the I²C2 controller remains enabled, its driver will keep (or reapply) the I²C pinctrl state, which conflicts with our overlay and prevents P9_19 from staying in GPIO mode. Disabling I²C2 in the overlay frees P9_19 so the new pinmux configuration (GPIO) takes effect.

RobertCNelson · October 7, 2025, 3:27pm

this should be solved with what i wrote here: Migrating from Debian 10 → 13 broke GPIO switch on P9_19 - #28 by RobertCNelson

update your uart overlay with:

&i2c2 {
	pinctrl-0 = <>;
	status = "disabled";
};

and

&am33xx_pinmux {
	pinctrl-names = "default";
	pinctrl-0 = <&rts_p9_19_pins>;

	rts_p9_19_pins: pinmux_rts_p9_19_pins {
		pinctrl-single,pins = <0x17C 0x07>; /* P9_19 as GPIO */
	};
};

Regards,
