7" LCD Display Frame + Touch released for Beagleboard Rev. C & xM

Hi, All

We released a new 7" LCD Display Frame + Touch for Beagleboard Rev. C
& xM just couple of months ago. Please visit our web pages below and
make comments.

http://beagleboard.org/project/Beada+Frame/
http://www.esky-sh.com/bbs/viewtopic.php?f=19&t=448

Android and Wince 6.0 software stuff are currently provided.

Regards

hi beada,

How to buy this LCD module in China? and how much? Thanks.

Best Regards

Jordon Wu

2011/9/28 beada <service.esky.sh@gmail.com>

Specs, pricing and shipping information?

– Stephen

"Kids these days.
Whatever happened to hard work?"

– Joel Spolsky, The perils of javaschools

http://www.ebay.com/itm/7-TFT-LCD-Frame-Touch-TI-Cortex-A8-BeagleBoard-/120733208811?_trksid=p5197.m7&_trkparms=algo%3DLVI%26itu%3DUCI%26otn%3D5%26po%3DLVI%26ps%3D63%26clkid%3D3111438601812690677

2011/9/29 beada <service.esky.sh@gmail.com>

http://www.ebay.com/itm/7-TFT-LCD-Frame-Touch-TI-Cortex-A8-BeagleBoard-/120733208811?_trksid=p5197.m7&_trkparms=algo%3DLVI%26itu%3DUCI%26otn%3D5%26po%3DLVI%26ps%3D63%26clkid%3D3111438601812690677

Just a short note. I like this LCD-Frame-Touch very much so I have ordered one to use in combination with a BeagleBoard XM rev B.

Many thanks for the nice work! I will let you know how it works.

Greetings, Han

Just a short note. I like this LCD-Frame-Touch very much so I have ordered one to use in combination with a BeagleBoard XM rev B.

Many thanks for the nice work! I will let you know how it works.

Greetings, Han

I just received the screen and it does look indeed nice. It works very well with the included demo software (Android and Windows CE)

But there is hardly any documentation on the SD card. In the boot partition is a readme on how to start windows CE or Android.

I could not find any schematic, nor a list of pins I should enable in the bootloader, which touch screen controller is used, timing settings for the LCD etc.
(Probably it is possible to retrieve this kind of information from the source code on the SD card, but that is not so convenient…)

Still a good buy but a bit of a mixed experience.

Greetings, Han

Hello, Han

Thanks for the comments. You can logon our product forum for futher
help if you do have.
For the schematics, we will post it to our customers very soon.

Regards

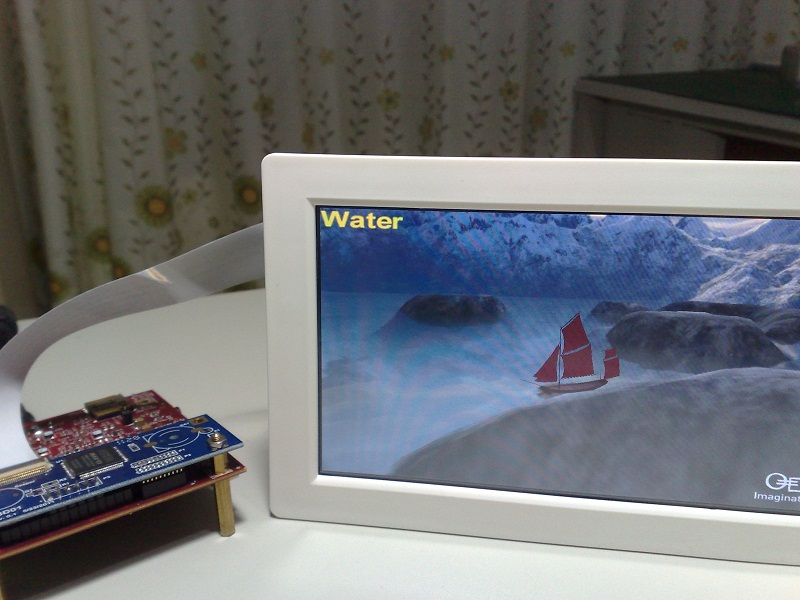

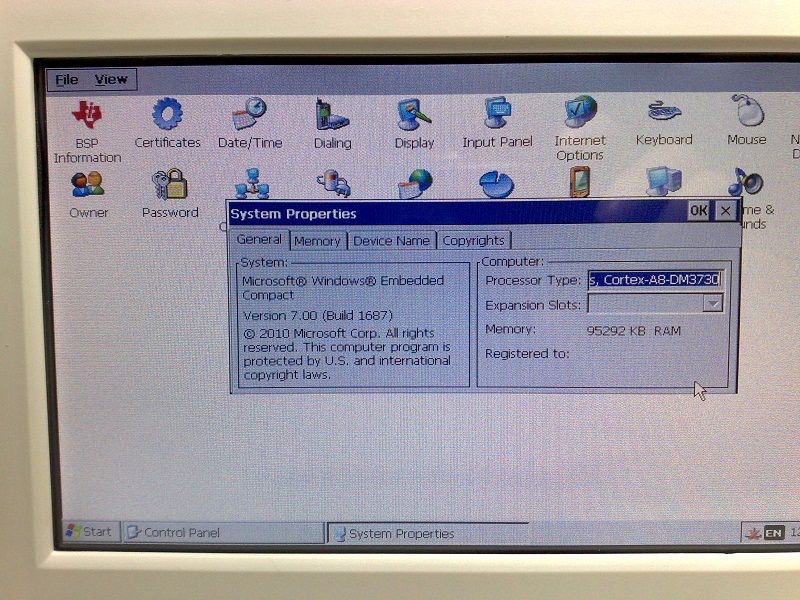

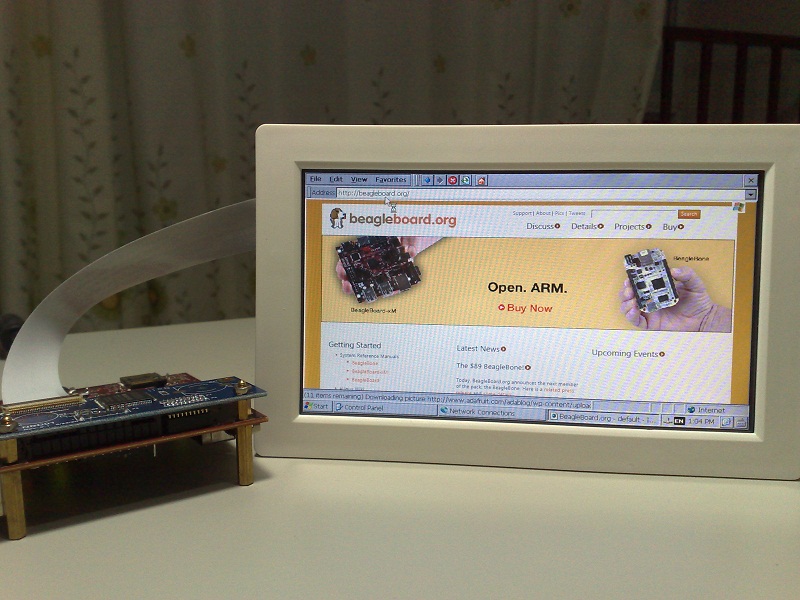

Good news everyone, Windows Embedded Compact 7 ported on Beagleboard xM now:

  1. 7" LCD screen
  2. Resistive touch screen
  3. PWM backlight(need cpld firmware support)
  4. RTC (need cpld firmware support)
  5. USB HOST
  6. USB OTG
  7. USB Ethernet SMSC9514
  8. Audio In/Out
  9. MicroSD
  10. UART
  11. Silverlight video player(with TI DVSDK)
  12. OpenGL graphics acceleration (PowerVR)
