Custom Beagleboneblack Board Kernel Restart Issue

[rd_monster]

Hi folks,

I want to use Beagleboneblack Image to our custom designed board thats same as BeagleboneBlack.

We just excluded the HDMI, Ethernet and P8-P9 headers . Therefore Our board didn’t havea a TDA19988 ann LAN8710.

I also solder 24LC32A EEPROM from the other BBB to our custom board.

When i try to boot from SD Card, kernel decompression was corrupt and then system start again .

What kind of modifications i need to make for able to use the official relased BBB Images(Latest Software Images - BeagleBoard) with my custom board?

Can i disable Ethernet from uEnv.txt?

I also share with boot message of my custom board and BBB.

Best regards.

debian@BeagleBone:~$ uname -a
Linux BeagleBone 5.10.168-ti-r71 #1bullseye SMP PREEMPT Fri Sep 1 04:05:07 UTC 2023 armv7l GNU/Linux

debian@BeagleBone:~$ lsb_release -a
No LSB modules are available.
Distributor ID: Debian
Description: Debian GNU/Linux 11 (bullseye)
Release: 11
Codename: bullseye

/boot/uEnv.txt

enable_uboot_overlays=1

disable_uboot_overlay_video=1

Custom Board boot message(boot from SD Card)

U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1


U-Boot 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)

CPU  : AM335X-GP rev 2.1
Model: TI AM335x BeagleBone Black
DRAM:  512 MiB
Reset Source: Power-on reset has occurred.
RTC 32KCLK Source: External.
Core:  150 devices, 14 uclasses, devicetree: separate
WDT:   Started wdt@44e35000 with servicing (60s timeout)
MMC:   OMAP SD/MMC: 0, OMAP SD/MMC: 1
Loading Environment from EXT4... ** File not found /boot/uboot.env **

** Unable to read "/boot/uboot.env" from mmc0:1 **
Board: BeagleBone Black
<ethaddr> not set. Validating first E-fuse MAC
BeagleBone Black:
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x54
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x55
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x56
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x57
Net:   Could not get PHY for ethernet@4a100000: addr 0
eth2: ethernet@4a100000, eth3: usb_ether
Press SPACE to abort autoboot in 0 seconds
board_name=[A335BNLT] ...
board_rev=[00C0] ...
switch to partitions #0, OK
mmc0 is current device
SD/MMC found on device 0
Couldn't find partition 0:2 0x82000000
Can't set block device
Couldn't find partition 0:2 0x82000000
Can't set block device
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
libfdt fdt_check_header(): FDT_ERR_BADMAGIC
Scanning disk mmc@48060000.blk...
Scanning disk mmc@481d8000.blk...
Found 3 disks
No EFI system partition
BootOrder not defined
EFI boot manager: Cannot load any image
gpio: pin 56 (gpio 56) value is 0
gpio: pin 55 (gpio 55) value is 0
gpio: pin 54 (gpio 54) value is 0
gpio: pin 53 (gpio 53) value is 1
switch to partitions #0, OK
mmc0 is current device
gpio: pin 54 (gpio 54) value is 1
Checking for: /uEnv.txt ...
Checking for: /boot/uEnv.txt ...
gpio: pin 55 (gpio 55) value is 1
1796 bytes read in 9 ms (194.3 KiB/s)
Loaded environment from /boot/uEnv.txt
Checking if uname_r is set in /boot/uEnv.txt...
gpio: pin 56 (gpio 56) value is 1
Running uname_boot ...
loading /boot/vmlinuz-5.10.168-ti-r71 ...
11342336 bytes read in 726 ms (14.9 MiB/s)
debug: [enable_uboot_overlays=1] ...
debug: [enable_uboot_cape_universal=] ...
debug: [uboot_base_dtb_univ=am335x-boneblack-uboot.dtb] ...
uboot_overlays: [uboot_base_dtb=am335x-boneblack-uboot.dtb] ...
uboot_overlays: Switching too: dtb=am335x-boneblack-uboot.dtb ...
loading /boot/dtbs/5.10.168-ti-r71/am335x-boneblack-uboot.dtb ...
102508 bytes read in 21 ms (4.7 MiB/s)
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Found 0 extension board(s).
uboot_overlays: [fdt_buffer=0x60000] ...
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-ADC-00A0.dtbo ...
645 bytes read in 14 ms (44.9 KiB/s)
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-BONE-eMMC1-01-00A0.dtbo ...
1605 bytes read in 14 ms (111.3 KiB/s)
uboot_overlays: uboot loading of [BB-HDMI-TDA998x-00A0.dtbo] disabled by /boot/uEnv.txt [disable_uboot_overlay_video=1]...
loading /boot/initrd.img-5.10.168-ti-r71 ...
7719588 bytes read in 498 ms (14.8 MiB/s)
debug: [console=ttyS0,115200n8 root=/dev/mmcblk0p1 ro rootfstype=ext4 rootwait coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100 quiet] ...
debug: [bootz 0x82000000 0x88080000:75caa4 88000000] ...
Kernel image @ 0x82000000 [ 0x000000 - 0xad1200 ]
## Flattened Device Tree blob at 88000000
   Booting using the fdt blob at 0x88000000
   Loading Ramdisk to 8f8a3000, end 8ffffaa4 ... OK
   Loading Device Tree to 8f826000, end 8f8a2fff ... OK

Starting kernel ...

[    0.113917] l3-aon-clkctrl:0000:0: failed to disable
[    3.596503] debugfs: Directory '49000000.dma' with parent 'dmaengine' already present!
[    3.785959] mdio_bus 4a101000.mdio: mii_bus 4a101000.mdio couldn't get reset GPIO

U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1


U-Boot 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
...

Beagleboneblack boot message(same SD Card)

U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1


U-Boot 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)

CPU  : AM335X-GP rev 2.1
Model: TI AM335x BeagleBone Black
DRAM:  512 MiB
Reset Source: Power-on reset has occurred.
RTC 32KCLK Source: External.
Core:  150 devices, 14 uclasses, devicetree: separate
WDT:   Started wdt@44e35000 with servicing (60s timeout)
MMC:   OMAP SD/MMC: 0, OMAP SD/MMC: 1
Loading Environment from EXT4... ** File not found /boot/uboot.env **

** Unable to read "/boot/uboot.env" from mmc0:1 **
Board: BeagleBone Black
<ethaddr> not set. Validating first E-fuse MAC
BeagleBone Black:
BeagleBone Cape EEPROM: no EEPROM at address: 0x54
BeagleBone Cape EEPROM: no EEPROM at address: 0x55
BeagleBone Cape EEPROM: no EEPROM at address: 0x56
BeagleBone Cape EEPROM: no EEPROM at address: 0x57
Net:   eth2: ethernet@4a100000, eth3: usb_ether
Press SPACE to abort autoboot in 0 seconds
board_name=[A335BNLT] ...
board_rev=[00C0] ...
switch to partitions #0, OK
mmc0 is current device
SD/MMC found on device 0
Couldn't find partition 0:2 0x82000000
Can't set block device
Couldn't find partition 0:2 0x82000000
Can't set block device
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
libfdt fdt_check_header(): FDT_ERR_BADMAGIC
Scanning disk mmc@48060000.blk...
Scanning disk mmc@481d8000.blk...
Found 4 disks
No EFI system partition
BootOrder not defined
EFI boot manager: Cannot load any image
gpio: pin 56 (gpio 56) value is 0
gpio: pin 55 (gpio 55) value is 0
gpio: pin 54 (gpio 54) value is 0
gpio: pin 53 (gpio 53) value is 1
switch to partitions #0, OK
mmc0 is current device
gpio: pin 54 (gpio 54) value is 1
Checking for: /uEnv.txt ...
Checking for: /boot/uEnv.txt ...
gpio: pin 55 (gpio 55) value is 1
1796 bytes read in 8 ms (218.8 KiB/s)
Loaded environment from /boot/uEnv.txt
Checking if uname_r is set in /boot/uEnv.txt...
gpio: pin 56 (gpio 56) value is 1
Running uname_boot ...
loading /boot/vmlinuz-5.10.168-ti-r71 ...
11342336 bytes read in 720 ms (15 MiB/s)
debug: [enable_uboot_overlays=1] ...
debug: [enable_uboot_cape_universal=] ...
debug: [uboot_base_dtb_univ=am335x-boneblack-uboot.dtb] ...
uboot_overlays: [uboot_base_dtb=am335x-boneblack-uboot.dtb] ...
uboot_overlays: Switching too: dtb=am335x-boneblack-uboot.dtb ...
loading /boot/dtbs/5.10.168-ti-r71/am335x-boneblack-uboot.dtb ...
102508 bytes read in 21 ms (4.7 MiB/s)
Found 0 extension board(s).
uboot_overlays: [fdt_buffer=0x60000] ...
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-ADC-00A0.dtbo ...
645 bytes read in 14 ms (44.9 KiB/s)
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-BONE-eMMC1-01-00A0.dtbo ...
1605 bytes read in 14 ms (111.3 KiB/s)
uboot_overlays: uboot loading of [BB-HDMI-TDA998x-00A0.dtbo] disabled by /boot/uEnv.txt [disable_uboot_overlay_video=1]...
loading /boot/initrd.img-5.10.168-ti-r71 ...
7719588 bytes read in 499 ms (14.8 MiB/s)
debug: [console=ttyS0,115200n8 root=/dev/mmcblk0p1 ro rootfstype=ext4 rootwait coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100 quiet] ...
debug: [bootz 0x82000000 0x88080000:75caa4 88000000] ...
Kernel image @ 0x82000000 [ 0x000000 - 0xad1200 ]
## Flattened Device Tree blob at 88000000
   Booting using the fdt blob at 0x88000000
   Loading Ramdisk to 8f8a3000, end 8ffffaa4 ... OK
   Loading Device Tree to 8f826000, end 8f8a2fff ... OK

Starting kernel ...

[    0.113899] l3-aon-clkctrl:0000:0: failed to disable
[    3.593519] debugfs: Directory '49000000.dma' with parent 'dmaengine' already present!
[    3.781991] mdio_bus 4a101000.mdio: mii_bus 4a101000.mdio couldn't get reset GPIO
[    3.960940] omap_voltage_late_init: Voltage driver support not added

Debian GNU/Linux 11 BeagleBone ttyS0

BeagleBoard.org Debian Bullseye IoT Image 2023-09-02
Support: https://bbb.io/debian
default username:password is [debian:temppwd]

BeagleBone login:

[RobertCNelson]

@rd_monster

We just excluded the HDMI, Ethernet and P8-P9 headers . Therefore Our board didn’t havea a TDA19988 ann LAN8710.

Boot with an ID as a BeagleBone Green, that’ll save you from always disabling HDMI… ( https://github.com/RobertCNelson/boot-scripts/blob/master/device/bone/bbg-eeprom.dump )

Ethernet is probed over mdio, so missing a phy should silently fail wit no issue…

The random reboot on startup looks like watchdog kicking off…

Please remove “quiet” from your boot args, and let the serial debugger run a little farther…

Starting kernel ...

[    0.113917] l3-aon-clkctrl:0000:0: failed to disable
[    3.596503] debugfs: Directory '49000000.dma' with parent 'dmaengine' already present!
[    3.785959] mdio_bus 4a101000.mdio: mii_bus 4a101000.mdio couldn't get reset GPIO

U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1


U-Boot 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
...

as another 10 lines or so, it dumps the reason for the reboot…

Reset Source: <something>

Regards,

[rd_monster]

@RobertCNelson

BeagleBone Green,

Hi, Thank you for reply,

I deleted the quiet flag from bootargs, My custom board message is below. I also share the board power supply output.

U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1


U-Boot 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)

CPU  : AM335X-GP rev 2.1
Model: TI AM335x BeagleBone Black
DRAM:  512 MiB
Reset Source: Power-on reset has occurred.
RTC 32KCLK Source: External.
Core:  150 devices, 14 uclasses, devicetree: separate
WDT:   Started wdt@44e35000 with servicing (60s timeout)
MMC:   OMAP SD/MMC: 0, OMAP SD/MMC: 1
Loading Environment from EXT4... ** File not found /boot/uboot.env **

** Unable to read "/boot/uboot.env" from mmc0:1 **
Board: BeagleBone Black
<ethaddr> not set. Validating first E-fuse MAC
BeagleBone Black:
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x54
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x55
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x56
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x57
Net:   Could not get PHY for ethernet@4a100000: addr 0
eth2: ethernet@4a100000, eth3: usb_ether
Press SPACE to abort autoboot in 0 seconds
board_name=[A335BNLT] ...
board_rev=[00C0] ...
switch to partitions #0, OK
mmc0 is current device
SD/MMC found on device 0
Couldn't find partition 0:2 0x82000000
Can't set block device
Couldn't find partition 0:2 0x82000000
Can't set block device
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
libfdt fdt_check_header(): FDT_ERR_BADMAGIC
Scanning disk mmc@48060000.blk...
Scanning disk mmc@481d8000.blk...
Found 3 disks
No EFI system partition
BootOrder not defined
EFI boot manager: Cannot load any image
gpio: pin 56 (gpio 56) value is 0
gpio: pin 55 (gpio 55) value is 0
gpio: pin 54 (gpio 54) value is 0
gpio: pin 53 (gpio 53) value is 1
switch to partitions #0, OK
mmc0 is current device
gpio: pin 54 (gpio 54) value is 1
Checking for: /uEnv.txt ...
Checking for: /boot/uEnv.txt ...
gpio: pin 55 (gpio 55) value is 1
1790 bytes read in 9 ms (193.4 KiB/s)
Loaded environment from /boot/uEnv.txt
Checking if uname_r is set in /boot/uEnv.txt...
gpio: pin 56 (gpio 56) value is 1
Running uname_boot ...
loading /boot/vmlinuz-5.10.168-ti-r71 ...
11342336 bytes read in 726 ms (14.9 MiB/s)
debug: [enable_uboot_overlays=1] ...
debug: [enable_uboot_cape_universal=] ...
debug: [uboot_base_dtb_univ=am335x-boneblack-uboot.dtb] ...
uboot_overlays: [uboot_base_dtb=am335x-boneblack-uboot.dtb] ...
uboot_overlays: Switching too: dtb=am335x-boneblack-uboot.dtb ...
loading /boot/dtbs/5.10.168-ti-r71/am335x-boneblack-uboot.dtb ...
102508 bytes read in 21 ms (4.7 MiB/s)
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Found 0 extension board(s).
uboot_overlays: [fdt_buffer=0x60000] ...
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-ADC-00A0.dtbo ...
645 bytes read in 14 ms (44.9 KiB/s)
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-BONE-eMMC1-01-00A0.dtbo ...
1605 bytes read in 14 ms (111.3 KiB/s)
uboot_overlays: uboot loading of [BB-HDMI-TDA998x-00A0.dtbo] disabled by /boot/uEnv.txt [disable_uboot_overlay_video=1]...
loading /boot/initrd.img-5.10.168-ti-r71 ...
7719588 bytes read in 498 ms (14.8 MiB/s)
debug: [console=ttyS0,115200n8 root=/dev/mmcblk0p1 ro rootfstype=ext4 rootwait coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100] ...
debug: [bootz 0x82000000 0x88080000:75caa4 88000000] ...
Kernel image @ 0x82000000 [ 0x000000 - 0xad1200 ]
## Flattened Device Tree blob at 88000000
   Booting using the fdt blob at 0x88000000
   Loading Ramdisk to 8f8a3000, end 8ffffaa4 ... OK
   Loading Device Tree to 8f826000, end 8f8a2fff ... OK

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 5.10.168-ti-r71 (voodoo@rpi4b4g-02) (gcc (Debian 10.2.1-6) 10.2.1 20210110, GNU ld (GNU Binutils for Debian) 2.35.2) #1bullseye SMP PREEMPT Fri Sep 1 04:05:07 UTC 2023
[    0.000000] CPU: ARMv7 Processor [413fc082] revision 2 (ARMv7), cr=10c5387d
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] OF: fdt: Machine model: TI AM335x BeagleBone Black
[    0.000000] Memory policy: Data cache writeback
[    0.000000] efi: UEFI not found.
[    0.000000] cma: Reserved 48 MiB at 0x9c800000
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x0000000080000000-0x000000009fdfffff]
[    0.000000]   HighMem  empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000080000000-0x000000009fdfffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000080000000-0x000000009fdfffff]
[    0.000000] CPU: All CPU(s) started in SVC mode.
[    0.000000] AM335X ES2.1 (sgx neon)
[    0.000000] percpu: Embedded 21 pages/cpu s54604 r8192 d23220 u86016
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 129412
[    0.000000] Kernel command line: console=ttyS0,115200n8 root=/dev/mmcblk0p1 ro rootfstype=ext4 rootwait coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100
[    0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[    0.000000] mem auto-init: stack:off, heap alloc:on, heap free:off
[    0.000000] Memory: 436612K/522240K available (15360K kernel code, 1446K rwdata, 4040K rodata, 1024K init, 444K bss, 36476K reserved, 49152K cma-reserved, 0K highmem)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] rcu: Preemptible hierarchical RCU implementation.
[    0.000000] rcu:     RCU event tracing is enabled.
[    0.000000] rcu:     RCU restricting CPUs from NR_CPUS=2 to nr_cpu_ids=1.
[    0.000000]  Trampoline variant of Tasks RCU enabled.
[    0.000000]  Tracing variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=1
[    0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[    0.000000] IRQ: Found an INTC at 0x(ptrval) (revision 5.0) with 128 interrupts
[    0.000000] TI gptimer clocksource: always-on /ocp/interconnect@44c00000/segment@200000/target-module@31000
[    0.000011] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 89478484971ns
[    0.000030] clocksource: dmtimer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[    0.000396] TI gptimer clockevent: 24000000 Hz at /ocp/interconnect@48000000/segment@0/target-module@40000
[    0.001825] Console: colour dummy device 80x30
[    0.001914] Calibrating delay loop (skipped) preset value.. 995.32 BogoMIPS (lpj=1990656)
[    0.001944] pid_max: default: 32768 minimum: 301
[    0.002575] LSM: Security Framework initializing
[    0.002695] Yama: becoming mindful.
[    0.002999] AppArmor: AppArmor initialized
[    0.003019] TOMOYO Linux initialized
[    0.003214] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.003233] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.005011] CPU: Testing write buffer coherency: ok
[    0.005104] CPU0: Spectre v2: using BPIALL workaround
[    0.028885] Setting up static identity map for 0x80100000 - 0x80100060
[    0.036470] rcu: Hierarchical SRCU implementation.
[    0.045731] EFI services will not be available.
[    0.056481] smp: Bringing up secondary CPUs ...
[    0.056505] smp: Brought up 1 node, 1 CPU
[    0.056518] SMP: Total of 1 processors activated (995.32 BogoMIPS).
[    0.056529] CPU: All CPU(s) started in SVC mode.
[    0.057468] devtmpfs: initialized
[    0.080834] VFP support v0.3: implementor 41 architecture 3 part 30 variant c rev 3
[    0.081339] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.081388] futex hash table entries: 256 (order: 2, 16384 bytes, linear)
[    0.085267] pinctrl core: initialized pinctrl subsystem
[    0.086488] DMI not present or invalid.
[    0.087414] NET: Registered protocol family 16
[    0.091475] DMA: preallocated 1024 KiB pool for atomic coherent allocations
[    0.114011] l3-aon-clkctrl:0000:0: failed to disable
[    0.114714] audit: initializing netlink subsys (disabled)
[    0.116214] thermal_sys: Registered thermal governor 'fair_share'
[    0.116229] thermal_sys: Registered thermal governor 'bang_bang'
[    0.116245] thermal_sys: Registered thermal governor 'step_wise'
[    0.116256] thermal_sys: Registered thermal governor 'user_space'
[    0.116266] thermal_sys: Registered thermal governor 'power_allocator'
[    0.116790] cpuidle: using governor ladder
[    0.116850] cpuidle: using governor menu
[    0.120565] audit: type=2000 audit(0.104:1): state=initialized audit_enabled=0 res=1
[    1.325891] hw-breakpoint: debug architecture 0x4 unsupported.
[    1.352961] Kprobes globally optimized
[    1.376882] raid6: skip pq benchmark and using algorithm neonx8
[    1.376916] raid6: using neon recovery algorithm
[    1.380370] iommu: Default domain type: Translated
[    1.383151] SCSI subsystem initialized
[    1.383986] usbcore: registered new interface driver usbfs
[    1.384052] usbcore: registered new interface driver hub
[    1.384115] usbcore: registered new device driver usb
[    1.385091] mc: Linux media interface: v0.10
[    1.385150] videodev: Linux video capture interface: v2.00
[    1.385321] pps_core: LinuxPPS API ver. 1 registered
[    1.385334] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    1.385361] PTP clock support registered
[    1.387623] NetLabel: Initializing
[    1.387649] NetLabel:  domain hash size = 128
[    1.387659] NetLabel:  protocols = UNLABELED CIPSOv4 CALIPSO
[    1.387758] NetLabel:  unlabeled traffic allowed by default
[    1.389052] clocksource: Switched to clocksource dmtimer
[    2.452565] VFS: Disk quotas dquot_6.6.0
[    2.452722] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[    2.453148] FS-Cache: Loaded
[    2.453559] CacheFiles: Loaded
[    2.454576] AppArmor: AppArmor Filesystem Enabled
[    2.467641] NET: Registered protocol family 2
[    2.467945] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    2.469632] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    2.469943] TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    2.470015] TCP bind hash table entries: 4096 (order: 3, 32768 bytes, linear)
[    2.470077] TCP: Hash tables configured (established 4096 bind 4096)
[    2.470694] MPTCP token hash table entries: 512 (order: 1, 8192 bytes, linear)
[    2.470802] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    2.470838] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    2.471100] NET: Registered protocol family 1
[    2.484609] RPC: Registered named UNIX socket transport module.
[    2.484634] RPC: Registered udp transport module.
[    2.484644] RPC: Registered tcp transport module.
[    2.484653] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    2.484673] NET: Registered protocol family 44
[    2.485504] Trying to unpack rootfs image as initramfs...
[    2.917339] Freeing initrd memory: 7540K
[    2.918132] hw perfevents: enabled with armv7_cortex_a8 PMU driver, 5 counters available
[    2.923737] Initialise system trusted keyrings
[    2.924229] workingset: timestamp_bits=14 max_order=17 bucket_order=3
[    2.932422] zbud: loaded
[    2.940544] NFS: Registering the id_resolver key type
[    2.940623] Key type id_resolver registered
[    2.940635] Key type id_legacy registered
[    2.940856] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    2.940873] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...
[    2.940924] jffs2: version 2.2. (NAND) (SUMMARY)  �© 2001-2006 Red Hat, Inc.
[    2.942172] fuse: init (API version 7.32)
[    3.031734] xor: automatically using best checksumming function   neon
[    3.031769] Key type asymmetric registered
[    3.031782] Asymmetric key parser 'x509' registered
[    3.031869] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 243)
[    3.036272] io scheduler mq-deadline registered
[    3.345000] ti-sysc: probe of 44e31000.target-module failed with error -16
[    3.375601] ti-sysc: probe of 48040000.target-module failed with error -16
[    3.486791] omap-mailbox 480c8000.mailbox: omap mailbox rev 0x400
[    3.597162] debugfs: Directory '49000000.dma' with parent 'dmaengine' already present!
[    3.597214] edma 49000000.dma: TI EDMA DMA engine driver
[    3.626441] pinctrl-single 44e10800.pinmux: 142 pins, size 568
[    3.641890] Serial: 8250/16550 driver, 6 ports, IRQ sharing disabled
[    3.646265] printk: console [ttyS0] disabled
[    3.646386] 44e09000.serial: ttyS0 at MMIO 0x44e09000 (irq = 20, base_baud = 3000000) is a 8250
[    4.473140] printk: console [ttyS0] enabled
[    4.481692] omap_rng 48310000.rng: Random Number Generator ver. 20
[    4.488274] random: crng init done
[    4.601235] loop: module loaded
[    4.617353] mdio_bus 4a101000.mdio: mii_bus 4a101000.mdio couldn't get reset GPIO
[    4.625929] cpsw 4a100000.ethernet: initialized cpsw ale version 1.4
[    4.632469] cpsw 4a100000.ethernet: ALE Table size 1024
[    4.637905] cpsw 4a100000.ethernet: cpts: overflow check period 1250 (jiffies)
[    4.645298] cpsw 4a100000.ethernet: Detected MACID = 64:8c:bb:90:1f:59
[    4.655060] usbcore: registered new interface driver smsc95xx
[    4.662728] am335x-phy-driver 47401300.usb-phy: supply vcc not found, using dummy regulator
[    4.671541] am335x-phy-driver 47401300.usb-phy: dummy supplies not allowed for exclusive requests
[    4.686123] am335x-phy-driver 47401b00.usb-phy: supply vcc not found, using dummy regulator
[    4.694955] am335x-phy-driver 47401b00.usb-phy: dummy supplies not allowed for exclusive requests
[    4.710695] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    4.717545] ehci-platform: EHCI generic platform driver
[    4.723348] ehci-omap: OMAP-EHCI Host Controller driver
[    4.739773] musb-hdrc musb-hdrc.1: MUSB HDRC host driver
[    4.745383] musb-hdrc musb-hdrc.1: new USB bus registered, assigned bus number 1
[    4.753275] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    4.761613] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.768897] usb usb1: Product: MUSB HDRC host driver
[    4.773904] usb usb1: Manufacturer: Linux 5.10.168-ti-r71 musb-hcd
[    4.780130] usb usb1: SerialNumber: musb-hdrc.1
[    4.785667] hub 1-0:1.0: USB hub found
[    4.789606] hub 1-0:1.0: 1 port detected
[    4.806486] omap_rtc 44e3e000.rtc: registered as rtc0
[    4.811983] omap_rtc 44e3e000.rtc: setting system clock to 2000-01-01T00:00:00 UTC (946684800)
[    4.822126] i2c /dev entries driver
[    4.829320] omap_wdt: OMAP Watchdog Timer Rev 0x01: initial timeout 60 sec
[    4.836950] softdog: initialized. soft_noboot=0 soft_margin=60 sec soft_panic=0 (nowayout=0)
[    4.845547] sof
U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1


U-Boot 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)

CPU  : AM335X-GP rev 2.1
Model: TI AM335x BeagleBone Black
DRAM:  512 MiB
Reset Source: Power-on reset has occurred.
RTC 32KCLK Source: External.
Core:  150 devices, 14 uclasses, devicetree: separate
WDT:   Started wdt@44e35000 with servicing (60s timeout)
MMC:   OMAP SD/MMC: 0, OMAP SD/MMC: 1
Loading Environment from EXT4... ** File not found /boot/uboot.env **

** Unable to read "/boot/uboot.env" from mmc0:1 **
Board: BeagleBone Black
<ethaddr> not set. Validating first E-fuse MAC
BeagleBone Black:
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x54
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x55
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x56
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
BeagleBone Cape EEPROM: no EEPROM at address: 0x57
Net:   Could not get PHY for ethernet@4a100000: addr 0
eth2: ethernet@4a100000, eth3: usb_ether
Press SPACE to abort autoboot in 0 seconds
board_name=[A335BNLT] ...
board_rev=[00C0] ...
switch to partitions #0, OK
mmc0 is current device
SD/MMC found on device 0
Couldn't find partition 0:2 0x82000000
Can't set block device
Couldn't find partition 0:2 0x82000000
Can't set block device
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Scanning disk mmc@48060000.blk...
Scanning disk mmc@481d8000.blk...
Found 3 disks
No EFI system partition
BootOrder not defined
EFI boot manager: Cannot load any image
gpio: pin 56 (gpio 56) value is 0
gpio: pin 55 (gpio 55) value is 0
gpio: pin 54 (gpio 54) value is 0
gpio: pin 53 (gpio 53) value is 1
switch to partitions #0, OK
mmc0 is current device
gpio: pin 54 (gpio 54) value is 1
Checking for: /uEnv.txt ...
Checking for: /boot/uEnv.txt ...
gpio: pin 55 (gpio 55) value is 1
1790 bytes read in 8 ms (217.8 KiB/s)
Loaded environment from /boot/uEnv.txt
Checking if uname_r is set in /boot/uEnv.txt...
gpio: pin 56 (gpio 56) value is 1
Running uname_boot ...
loading /boot/vmlinuz-5.10.168-ti-r71 ...
11342336 bytes read in 726 ms (14.9 MiB/s)
debug: [enable_uboot_overlays=1] ...
debug: [enable_uboot_cape_universal=] ...
debug: [uboot_base_dtb_univ=am335x-boneblack-uboot.dtb] ...
uboot_overlays: [uboot_base_dtb=am335x-boneblack-uboot.dtb] ...
uboot_overlays: Switching too: dtb=am335x-boneblack-uboot.dtb ...
loading /boot/dtbs/5.10.168-ti-r71/am335x-boneblack-uboot.dtb ...
102508 bytes read in 21 ms (4.7 MiB/s)
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Timed out in wait_for_event: status=0000
Check if pads/pull-ups of bus are properly configured
Found 0 extension board(s).
uboot_overlays: [fdt_buffer=0x60000] ...
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-ADC-00A0.dtbo ...
645 bytes read in 13 ms (47.9 KiB/s)
uboot_overlays: loading /boot/dtbs/5.10.168-ti-r71/overlays/BB-BONE-eMMC1-01-00A0.dtbo ...
1605 bytes read in 14 ms (111.3 KiB/s)
uboot_overlays: uboot loading of [BB-HDMI-TDA998x-00A0.dtbo] disabled by /boot/uEnv.txt [disable_uboot_overlay_video=1]...
loading /boot/initrd.img-5.10.168-ti-r71 ...
7719588 bytes read in 498 ms (14.8 MiB/s)
debug: [console=ttyS0,115200n8 root=/dev/mmcblk0p1 ro rootfstype=ext4 rootwait coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100] ...
debug: [bootz 0x82000000 0x88080000:75caa4 88000000] ...
Kernel image @ 0x82000000 [ 0x000000 - 0xad1200 ]
## Flattened Device Tree blob at 88000000
   Booting using the fdt blob at 0x88000000
   Loading Ramdisk to 8f8a3000, end 8ffffaa4 ... OK
   Loading Device Tree to 8f826000, end 8f8a2fff ... OK

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 5.10.168-ti-r71 (voodoo@rpi4b4g-02) (gcc (Debian 10.2.1-6) 10.2.1 20210110, GNU ld (GNU Binutils for Debian) 2.35.2) #1bullseye SMP PREEMPT Fri Sep 1 04:05:07 UTC 2023
[    0.000000] CPU: ARMv7 Processor [413fc082] revision 2 (ARMv7), cr=10c5387d
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] OF: fdt: Machine model: TI AM335x BeagleBone Black
[    0.000000] Memory policy: Data cache writeback
[    0.000000] efi: UEFI not found.
[    0.000000] cma: Reserved 48 MiB at 0x9c800000
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x0000000080000000-0x000000009fdfffff]
[    0.000000]   HighMem  empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000080000000-0x000000009fdfffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000080000000-0x000000009fdfffff]
[    0.000000] CPU: All CPU(s) started in SVC mode.
[    0.000000] AM335X ES2.1 (sgx neon)
[    0.000000] percpu: Embedded 21 pages/cpu s54604 r8192 d23220 u86016
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 129412
[    0.000000] Kernel command line: console=ttyS0,115200n8 root=/dev/mmcblk0p1 ro rootfstype=ext4 rootwait coherent_pool=1M net.ifnames=0 lpj=1990656 rng_core.default_quality=100
[    0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[    0.000000] mem auto-init: stack:off, heap alloc:on, heap free:off
[    0.000000] Memory: 436612K/522240K available (15360K kernel code, 1446K rwdata, 4040K rodata, 1024K init, 444K bss, 36476K reserved, 49152K cma-reserved, 0K highmem)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] rcu: Preemptible hierarchical RCU implementation.
[    0.000000] rcu:     RCU event tracing is enabled.
[    0.000000] rcu:     RCU restricting CPUs from NR_CPUS=2 to nr_cpu_ids=1.
[    0.000000]  Trampoline variant of Tasks RCU enabled.
[    0.000000]  Tracing variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=1
[    0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[    0.000000] IRQ: Found an INTC at 0x(ptrval) (revision 5.0) with 128 interrupts
[    0.000000] TI gptimer clocksource: always-on /ocp/interconnect@44c00000/segment@200000/target-module@31000
[    0.000011] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 89478484971ns
[    0.000030] clocksource: dmtimer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[    0.000395] TI gptimer clockevent: 24000000 Hz at /ocp/interconnect@48000000/segment@0/target-module@40000
[    0.001828] Console: colour dummy device 80x30
[    0.001915] Calibrating delay loop (skipped) preset value.. 995.32 BogoMIPS (lpj=1990656)
[    0.001943] pid_max: default: 32768 minimum: 301
[    0.002574] LSM: Security Framework initializing
[    0.002697] Yama: becoming mindful.
[    0.003000] AppArmor: AppArmor initialized
[    0.003020] TOMOYO Linux initialized
[    0.003218] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.003235] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.005010] CPU: Testing write buffer coherency: ok
[    0.005103] CPU0: Spectre v2: using BPIALL workaround
[    0.028878] Setting up static identity map for 0x80100000 - 0x80100060
[    0.036471] rcu: Hierarchical SRCU implementation.
[    0.045735] EFI services will not be available.
[    0.056481] smp: Bringing up secondary CPUs ...
[    0.056505] smp: Brought up 1 node, 1 CPU
[    0.056517] SMP: Total of 1 processors activated (995.32 BogoMIPS).
[    0.056529] CPU: All CPU(s) started in SVC mode.
[    0.057463] devtmpfs: initialized
[    0.080834] VFP support v0.3: implementor 41 architecture 3 part 30 variant c rev 3
[    0.081341] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.081388] futex hash table entries: 256 (order: 2, 16384 bytes, linear)
[    0.085219] pinctrl core: initialized pinctrl subsystem
[    0.086434] DMI not present or invalid.
[    0.087364] NET: Registered protocol family 16
[    0.091407] DMA: preallocated 1024 KiB pool for atomic coherent allocations
[    0.113956] l3-aon-clkctrl:0000:0: failed to disable
[    0.114658] audit: initializing netlink subsys (disabled)
[    0.116144] thermal_sys: Registered thermal governor 'fair_share'
[    0.116159] thermal_sys: Registered thermal governor 'bang_bang'
[    0.116177] thermal_sys: Registered thermal governor 'step_wise'
[    0.116187] thermal_sys: Registered thermal governor 'user_space'
[    0.116196] thermal_sys: Registered thermal governor 'power_allocator'
[    0.116723] cpuidle: using governor ladder
[    0.116779] cpuidle: using governor menu
[    0.120561] audit: type=2000 audit(0.104:1): state=initialized audit_enabled=0 res=1
[    1.325381] hw-breakpoint: debug architecture 0x4 unsupported.
[    1.352247] Kprobes globally optimized
[    1.376881] raid6: skip pq benchmark and using algorithm neonx8
[    1.376915] raid6: using neon recovery algorithm
[    1.380402] iommu: Default domain type: Translated
[    1.383181] SCSI subsystem initialized
[    1.384012] usbcore: registered new interface driver usbfs
[    1.384078] usbcore: registered new interface driver hub
[    1.384140] usbcore: registered new device driver usb
[    1.385130] mc: Linux media interface: v0.10
[    1.385184] videodev: Linux video capture interface: v2.00
[    1.385358] pps_core: LinuxPPS API ver. 1 registered
[    1.385372] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    1.385399] PTP clock support registered
[    1.387667] NetLabel: Initializing
[    1.387693] NetLabel:  domain hash size = 128
[    1.387703] NetLabel:  protocols = UNLABELED CIPSOv4 CALIPSO
[    1.387801] NetLabel:  unlabeled traffic allowed by default
[    1.389092] clocksource: Switched to clocksource dmtimer
[    2.451309] VFS: Disk quotas dquot_6.6.0
[    2.451464] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[    2.451803] FS-Cache: Loaded
[    2.452216] CacheFiles: Loaded
[    2.453341] AppArmor: AppArmor Filesystem Enabled
[    2.466320] NET: Registered protocol family 2
[    2.466625] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    2.468244] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    2.468558] TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    2.468631] TCP bind hash table entries: 4096 (order: 3, 32768 bytes, linear)
[    2.468693] TCP: Hash tables configured (established 4096 bind 4096)
[    2.469391] MPTCP token hash table entries: 512 (order: 1, 8192 bytes, linear)
[    2.469505] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    2.469542] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    2.469816] NET: Registered protocol family 1
[    2.483320] RPC: Registered named UNIX socket transport module.
[    2.483344] RPC: Registered udp transport module.
[    2.483354] RPC: Registered tcp transport module.
[    2.483364] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    2.483381] NET: Registered protocol family 44
[    2.484135] Trying to unpack rootfs image as initramfs...
[    2.915939] Freeing initrd memory: 7540K
[    2.916751] hw perfevents: enabled with armv7_cortex_a8 PMU driver, 5 counters available
[    2.922355] Initialise system trusted keyrings
[    2.922895] workingset: timestamp_bits=14 max_order=17 bucket_order=3
[    2.931101] zbud: loaded
[    2.939179] NFS: Registering the id_resolver key type
[    2.939266] Key type id_resolver registered
[    2.939279] Key type id_legacy registered
[    2.939498] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    2.939515] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...
[    2.939568] jffs2: version 2.2. (NAND) (SUMMARY)  �© 2001-2006 Red Hat, Inc.
[    2.940667] fuse: init (API version 7.32)
[    3.030209] xor: automatically using best checksumming function   neon
[    3.030241] Key type asymmetric registered
[    3.030253] Asymmetric key parser 'x509' registered
[    3.030338] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 243)
[    3.034735] io scheduler mq-deadline registered
[    3.342260] ti-sysc: probe of 44e31000.target-module failed with error -16
[    3.372612] ti-sysc: probe of 48040000.target-module failed with error -16
[    3.483202] omap-mailbox 480c8000.mailbox: omap mailbox rev 0x400
[    3.593687] debugfs: Directory '49000000.dma' with parent 'dmaengine' already present!
[    3.593740] edma 49000000.dma: TI EDMA DMA engine driver
[    3.622611] pinctrl-single 44e10800.pinmux: 142 pins, size 568
[    3.638072] Serial: 8250/16550 driver, 6 ports, IRQ sharing disabled
[    3.642447] printk: console [ttyS0] disabled
[    3.642567] 44e09000.serial: ttyS0 at MMIO 0x44e09000 (irq = 20, base_baud = 3000000) is a 8250
[    4.469329] printk: console [ttyS0] enabled
[    4.477885] omap_rng 48310000.rng: Random Number Generator ver. 20
[    4.484477] random: crng init done
[    4.597280] loop: module loaded
[    4.613390] mdio_bus 4a101000.mdio: mii_bus 4a101000.mdio couldn't get reset GPIO
[    4.621972] cpsw 4a100000.ethernet: initialized cpsw ale version 1.4
[    4.628512] cpsw 4a100000.ethernet: ALE Table size 1024
[    4.633954] cpsw 4a100000.ethernet: cpts: overflow check period 1250 (jiffies)
[    4.641344] cpsw 4a100000.ethernet: Detected MACID = 64:8c:bb:90:1f:59
[    4.651099] usbcore: registered new interface driver smsc95xx
[    4.658778] am335x-phy-driver 47401300.usb-phy: supply vcc not found, using dummy regulator
[    4.667589] am335x-phy-driver 47401300.usb-phy: dummy supplies not allowed for exclusive requests
[    4.682155] am335x-phy-driver 47401b00.usb-phy: supply vcc not found, using dummy regulator
[    4.691000] am335x-phy-driver 47401b00.usb-phy: dummy supplies not allowed for exclusive requests
[    4.706724] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    4.713575] ehci-platform: EHCI generic platform driver
[    4.719380] ehci-omap: OMAP-EHCI Host Controller driver
[    4.735825] musb-hdrc musb-hdrc.1: MUSB HDRC host driver
[    4.741434] musb-hdrc musb-hdrc.1: new USB bus registered, assigned bus number 1
[    4.749320] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    4.757657] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.764941] usb usb1: Product: MUSB HDRC host driver
[    4.769947] usb usb1: Manufacturer: Linux 5.10.168-ti-r71 musb-hcd
[    4.776174] usb usb1: SerialNumber: musb-hdrc.1
[    4.781686] hub 1-0:1.0: USB hub found
[    4.785614] hub 1-0:1.0: 1 port detected
[    4.802528] omap_rtc 44e3e000.rtc: registered as rtc0
[    4.808031] omap_rtc 44e3e000.rtc: setting system clock to 2000-01-01T00:00:00 UTC (946684800)
[    4.818168] i2c /dev entries driver
[    4.825370] omap_wdt: OMAP Watchdog Timer Rev 0x01: initial timeout 60 sec
[    4.832996] softdog: initialized. soft_noboot=0 soft_margin=60 sec soft_panic=0 (nowayout=0)
[    4.841593] soft
U-Boot SPL 2022.04-ge0d31da5 (Aug 04 2023 - 18:48:26 +0000)
Trying to boot from MMC1
...
(same boot message sequences follow repeatedly as i said previously)

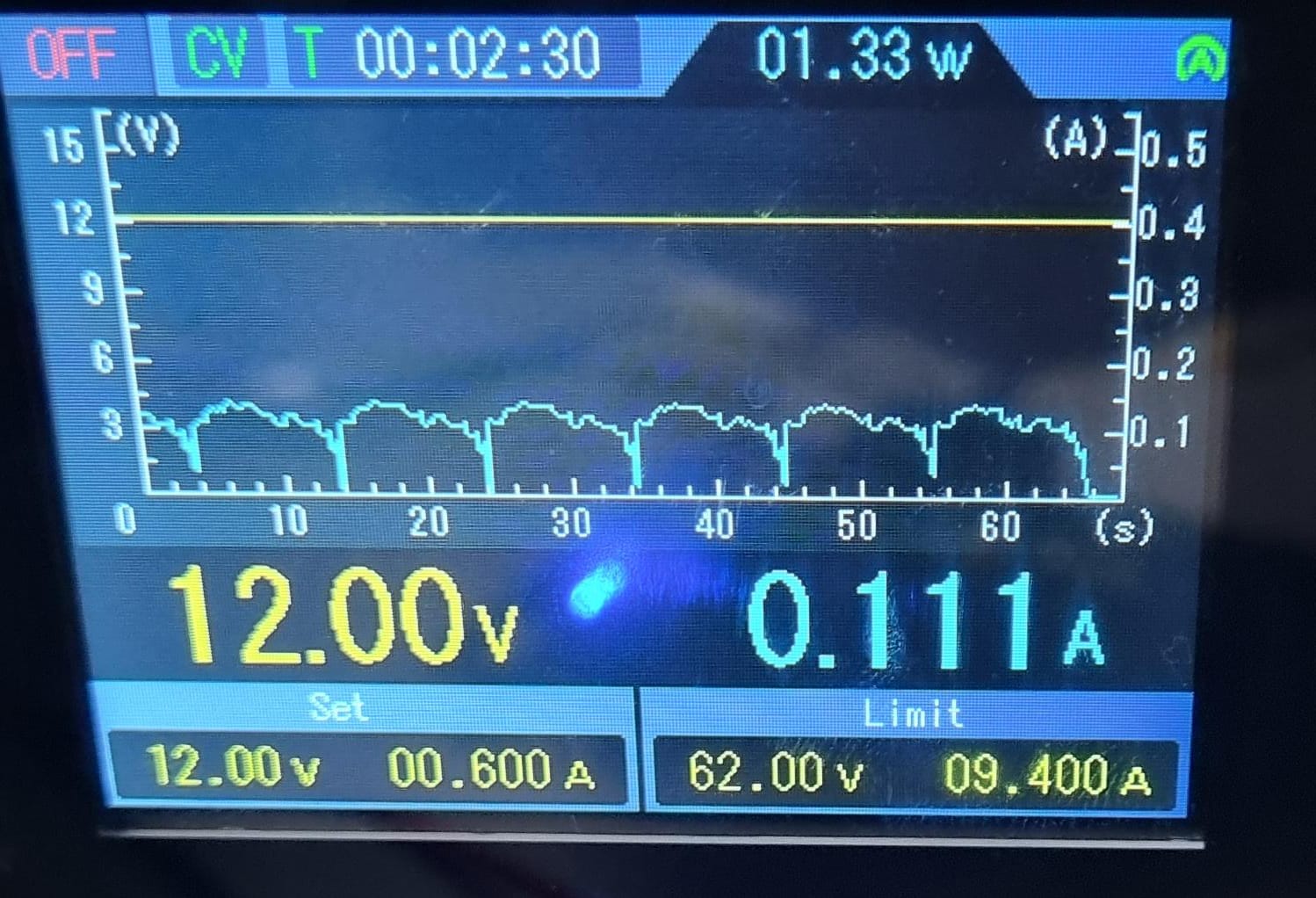

Board resetted approximately 10 second while WDT Timeout value is 60.

I don’t know what kind of mechanism make a watchdog refresh and what causes the WDT reset without expiring

Is it related to lack of TDA19988 and LAN8710 ICs?

Best regards.

[RobertCNelson]

@rd_monster

Reset Source: Power-on reset has occurred.

There you go, ‘something’ is triggering a power on reset…

Regards,

[rd_monster]

Hi Robert,

But we also saw your “quoted boot message line” when original Beaglebone Black is booting and also it logins successfully.

How can i find root cause of this problem?

Best regards.

[RobertCNelson]

Honestly, it’s probably a pcb/board issue… I’d start probing everything related to clock, etc and compare with the working BeagleBone Black…

Sadly, pcb layout isn’t my expertise… But when we have a working board, vs a non-working board with the same software. It’s probally something simple, a missed solder joint, maybe shorted etc…
