Hi, I’m quite new at using the bbx15 and yocto. I want to uso GPIO pins in my bbx15, i know the pinnout and know hoyw to use libgpiod and sysf. I have worked successfully with the gpio pins with a buildroot config, the problem is, I can’t make it work with yocto. I’m using kirkstone branch (6.1.80-ti) and libgpiod (v1.6.3) and also activated sysf (even though I know it’s deprecated). The library seems to work well because i can use the commands and so, but the leds won’t turn on, same with sysf. Which leads me to think that the problem isn’t the version of the library, not even if it is well incorporated into the kernel, if not something with the drivers/dts. I copied the gpio drivers from the version of buildroot (kernel - 4.19 and libgpiod 6.1.3) and pasted them into my yocoto config, also did the same with the dts (am57xx-beagle-x15-common.dtsi). But anything seems to work. What can I do?
Problem solved! The mapping is different from 4.19 to 6.1.80.
In 4.19 GPIO3_23 was gpiochip2 23 and in 6.1.80 is gpiochip4 23. Not to be mistaken to just add 1 to the gpiochip number.

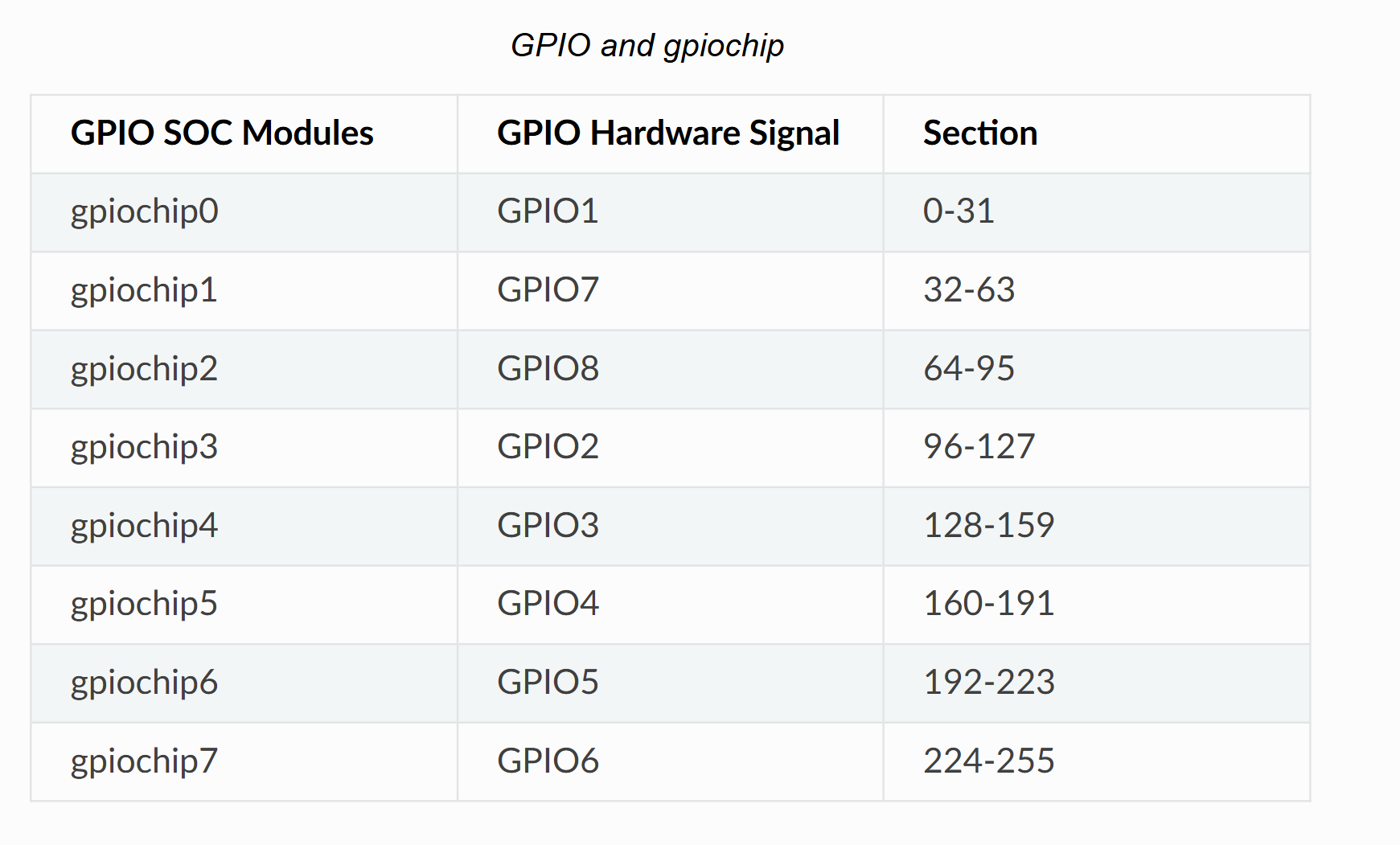

Look at this image for future reference.
or just checkout this link: GPIO — phyCORE-AM57x
