PRU not workingi in Kernels 5.10 bone rt, 5.10 ti rt but in 4.19 ti rt

General Discussion
1

Hello,
my pocket beagle with 5.10 bone rt Kernel, the pru, spi and pwms are working neither with Kernel 5.10.212-bone-rt-r78 nor 5.10.168-ti-rt-r77 and
Kernel 4.19.94-ti-rt-r74 w/ AM335X-PRU-UIO-00A0.dtbo the PRU not working
But with 4.19.94-ti-rt-r74 w/ AM335X-PRU-RPROC-4-19-TI-00A0.dtbo everything is fine (the last one):

Can anyone explain why? What am I doing wrong?

====================== 5.10.212-bone-rt-r78 w/ AM335X-PRU-UIO-00A0

debian@beaglebone:~$ uname -r
5.10.212-bone-rt-r78
debian@beaglebone:~$ rc_test_drivers

Kernel: 5.10.212-bone-rt-r78
BeagleBoard.org Debian Buster Console Image 2023-04-06
Debian: 10.13

PASSED: gpio 0
PASSED: gpio 1
PASSED: gpio 2
PASSED: gpio 3
ERROR: ti-pwm driver not loaded for hrpwm0
ERROR: ti-pwm driver not loaded for hrpwm1
ERROR: ti-pwm driver not loaded for hrpwm2
ERROR: ti-eqep driver not loaded for eqep0
ERROR: ti-eqep driver not loaded for eqep1
ERROR: ti-eqep driver not loaded for eqep2
ERROR: pru-rproc driver not loaded
PASSED: uart1
PASSED: uart2
PASSED: uart4
ERROR: uart5 driver not loaded
PASSED: i2c1
PASSED: i2c2
ERROR: spi driver not loaded
ERROR: LED driver not loaded
PASSED: ADC iio

Currently running on a:
MODEL_BB_POCKET
Robot Control library Version:
1.0.5

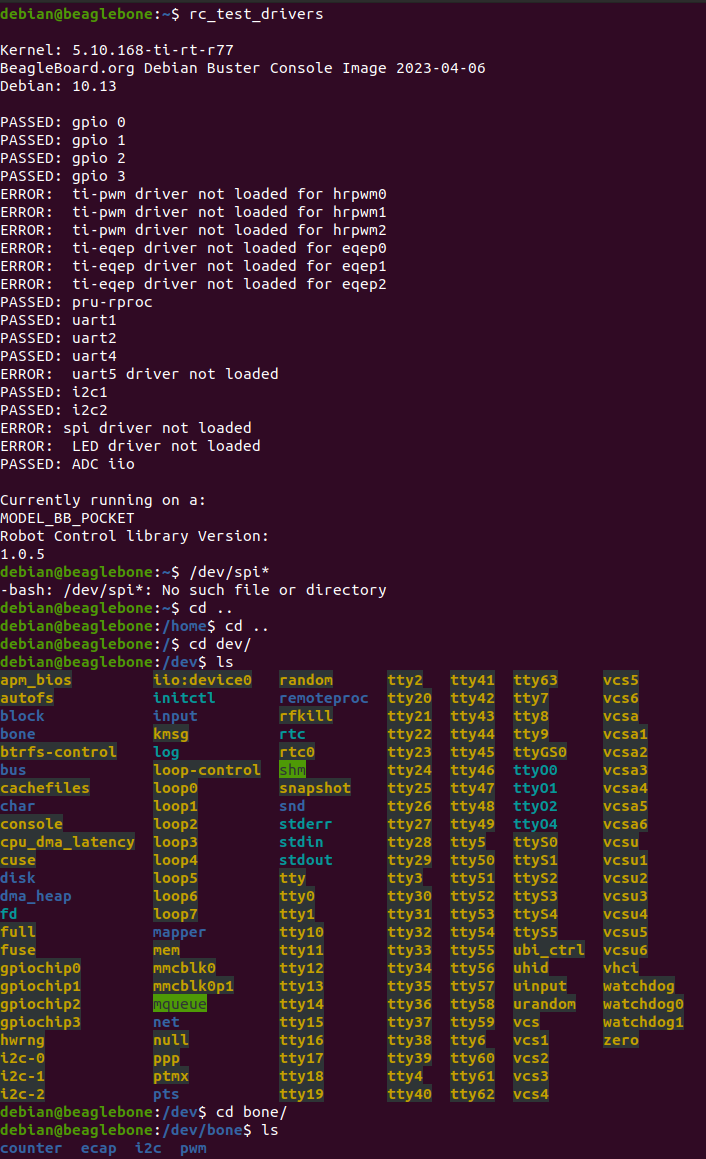

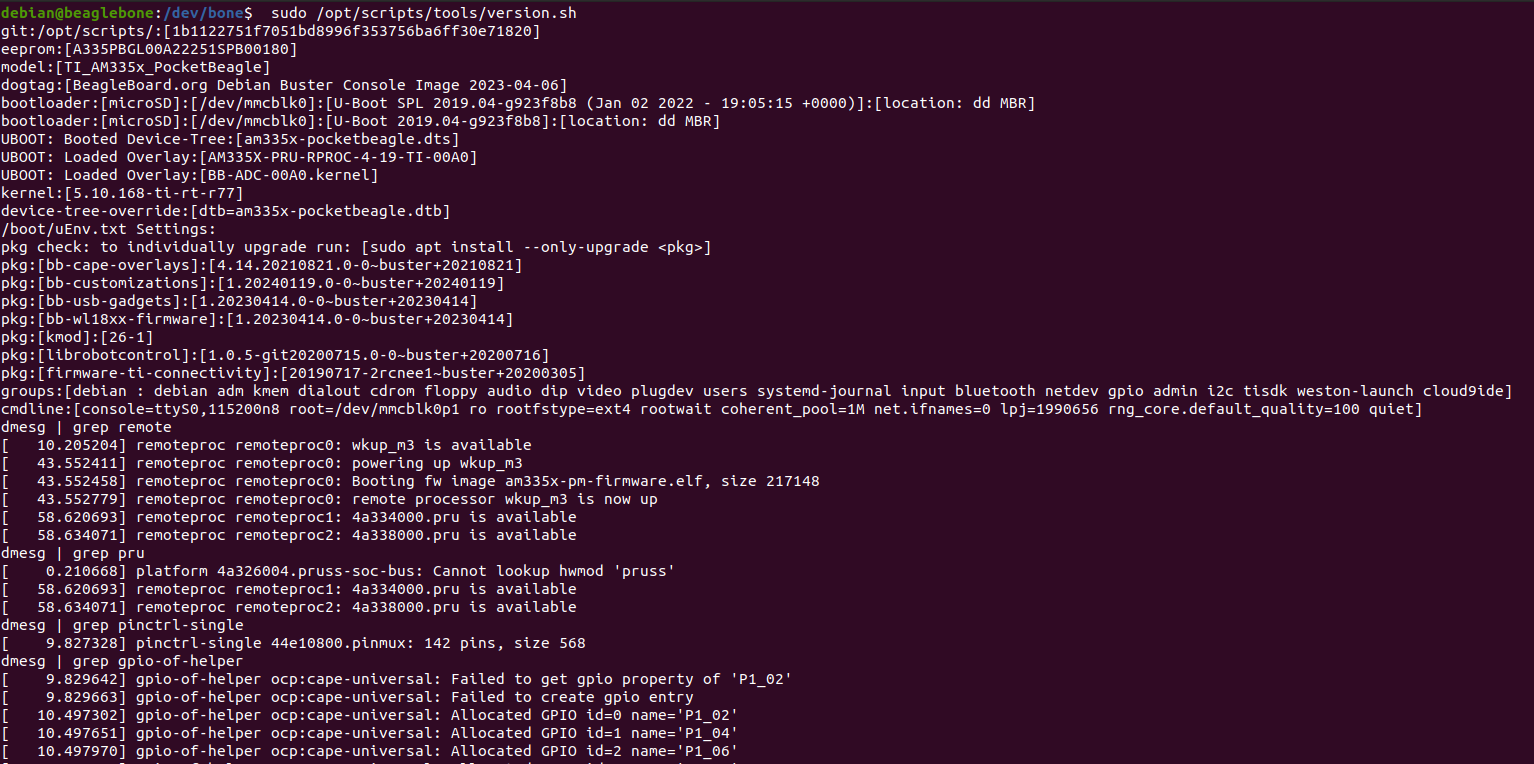

debian@beaglebone:~$ sudo /opt/scripts/tools/version.sh
